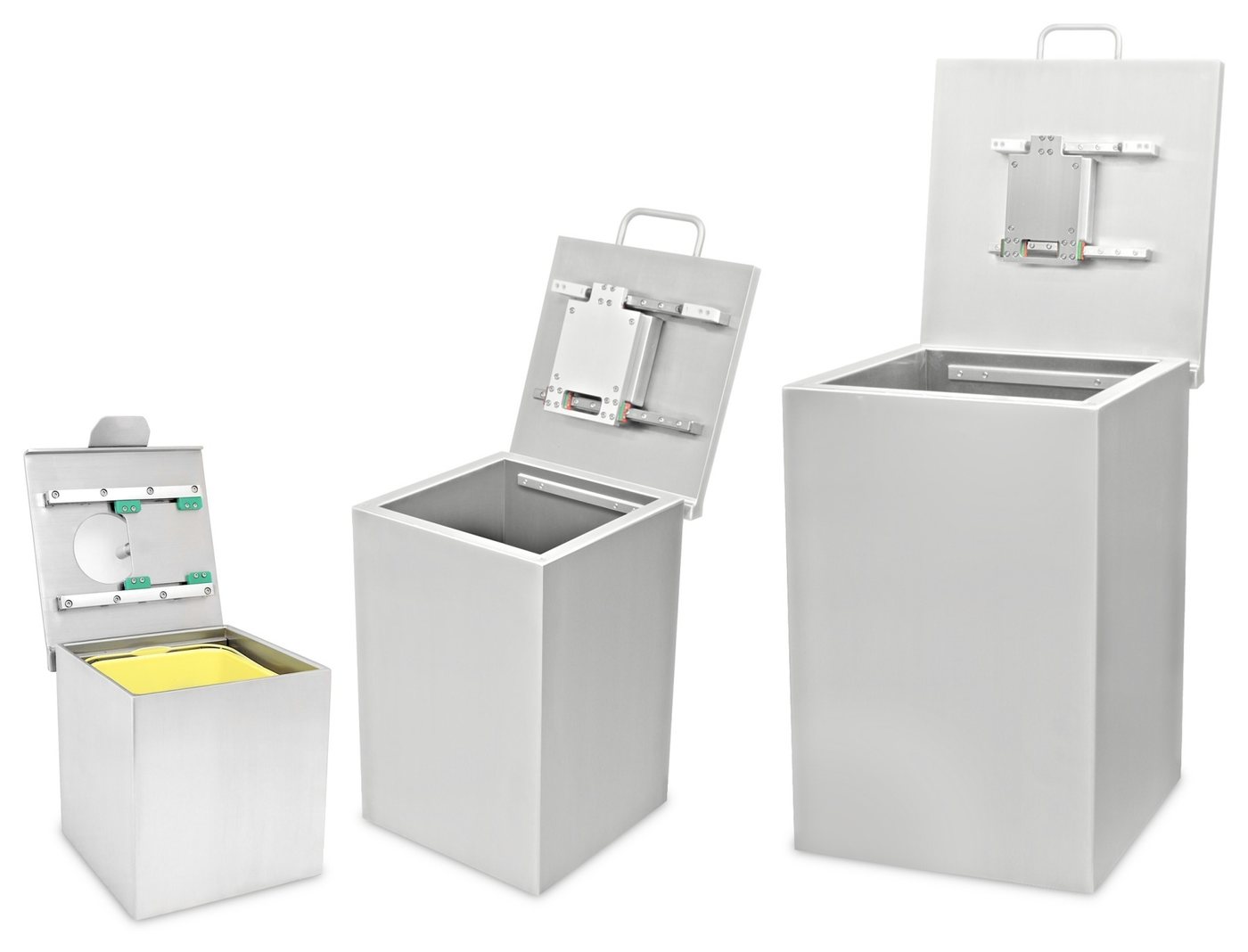

Shielded Waste Container
Three sizes · lead shielding 5, 10 or 20 mm Pb
Safe and simple storage of solid radioactive waste in nuclear medicine departments, hospitals and laboratories.
The container reduces the risk of exposure and contamination of staff handling radioactive materials. It is a simple, freestanding, rectangular stainless steel container with lead shielding in the walls and in the lid.
The main lid is opened upwards by its handle and pivots on two hinges at the rear. An integrated sliding lid running on linear guides allows waste to be deposited without opening the main lid; in the automatic version it is opened by a foot switch.
Main components
- Container – outer and inner stainless steel shell with lead shielding between them
- Main lid – stainless steel shell with lead shielding, two hinges and a handle
- Sliding lid – integrated in the main lid, running on linear guides
Options (all sizes)
- Shielding – lead, 5, 10 or 20 mm Pb
- Sliding lid opening – manual (M) or automatic with a foot switch (A)
- Undercarriage – platform with 4 wheels for easy relocation
Sizes
| Size | Type | Volume | Inner dimensions | Outer dimensions | Weight (Pb 5/10/20 mm) |
|---|---|---|---|---|---|
| Small* | PT698R4 | 13 l | 230 × 230 × 250 mm | 280 × 280 × 274 mm | … / … / … kg |
| Medium | PT698R1 | 24 l | 230 × 230 × 460 mm | 280 × 280 × 484 mm | … / … / … kg |
| Large | PT698R2 | 31 l | 275 × 275 × 460 mm | 325 × 325 × 484 mm | … / … / … kg |
Dimensions: width × depth × height. * The small container can be used with plastic sharps containers of 3 or 5 l.
Type designation: type + shielding thickness + opening method, e.g. PT698R2 20A = large container, 20 mm Pb shielding, automatic opening.
Specifications subject to change without notice.
