Syringe Shields for PET
Tungsten with a lead-glass window

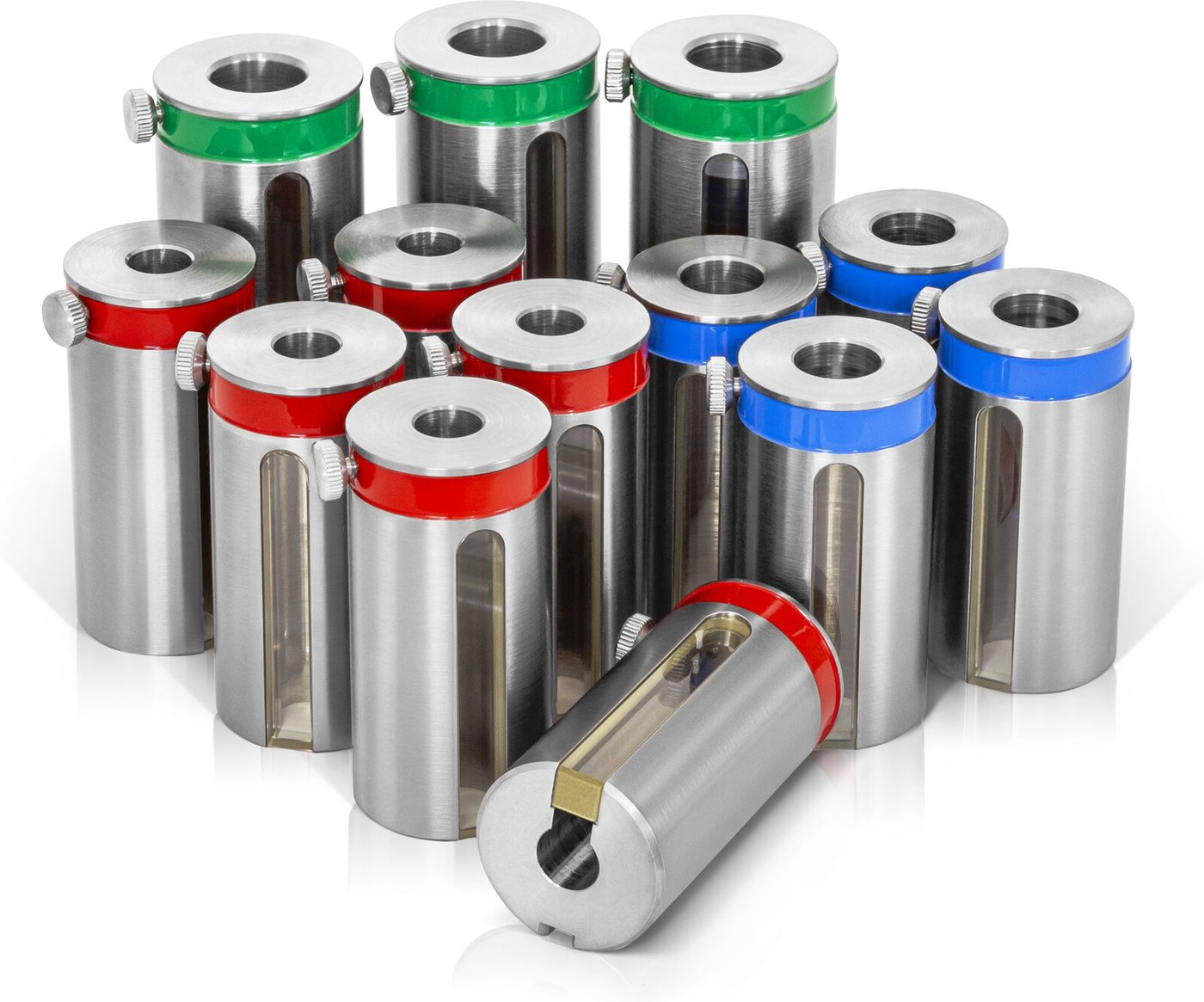

Tungsten syringe shields for PET radiopharmaceuticals.
The shields reduce the radiation exposure of the hands when a syringe with a radioactive solution is handled and make the administration of the dose safe and simple.
They fit the Automatic Dispensing Units PT317R7 and PT459R5 and the Administering Unit Lyza PT353R9.
Design
- Shielding body – cylindrical tungsten sleeve, 8–11 mm W depending on the type
- Viewing window – lead glass along the syringe
- Locking screw – holds the syringe in the shield
- Colour band – identifies the syringe volume
Types by syringe
| Syringe | 2/3 ml | 5 ml | 10 ml | 20 ml | 30 ml |
|---|---|---|---|---|---|
| B. Braun | PT359R5 | PT358R6 | PT634R2 | PT679R0 | PT680R0 |
| Chirana | PT661R0 | PT358R6 | PT634R3 | PT679R2 | PT680R1 |
| BD Plastic | PT541R0 | PT540R1 | PT684R0 | PT679R1 | on request |
| Terumo | PT359R8 | PT358R8 | PT634R2 | on request | on request |
Shields for other syringe types are available on request.
Specifications subject to change without notice.
